La Seine Musicale

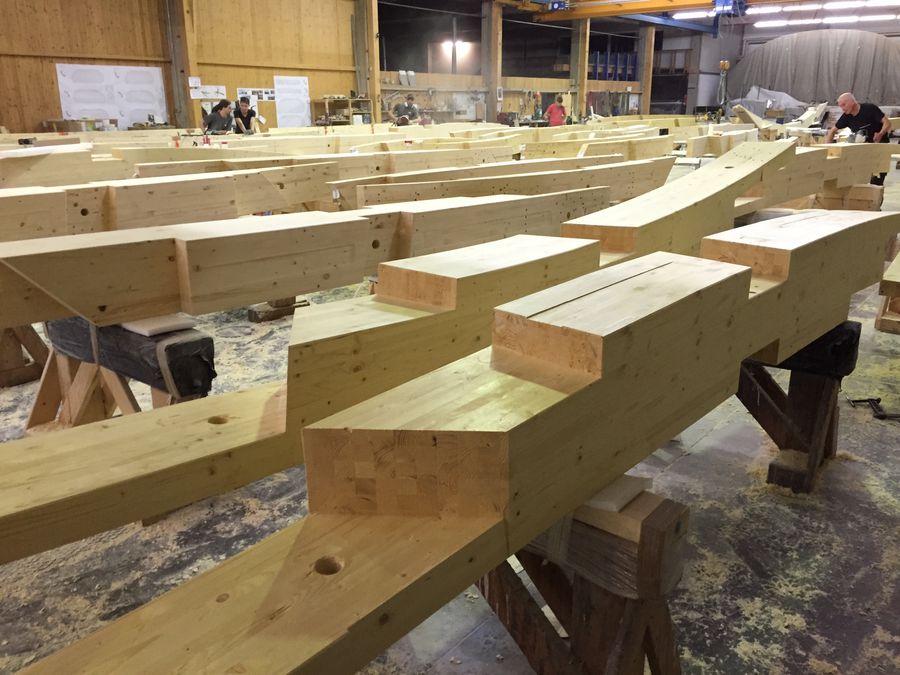

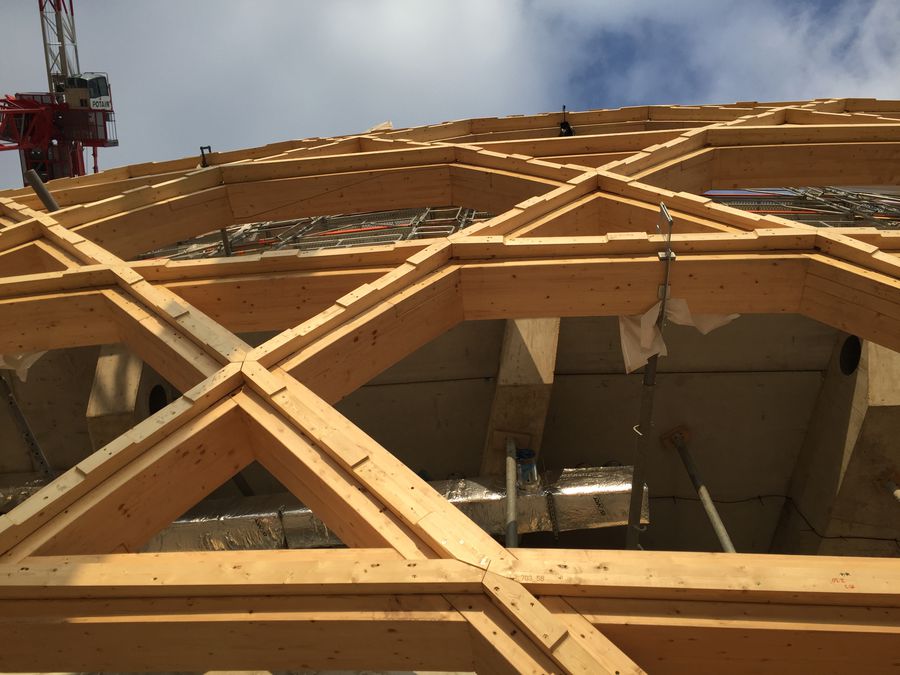

On the banks of the Seine in Boulogne-Billancourt, west of Paris, a ship-like building complex was built: “La Seine Musicale”. This cultural centre was designed by Shigeru Ban Jean de Gastines and opened in spring 2017. The building envelope is supported by a free-form and geometrically networked glulam timber structure and has a rotating photovoltaic sail. The sail follows the course of the sun and, in this way, maximises energy production. In this architectural jewel, HESS TIMBER was responsible for the design, manufacture, and assembly of the free-formed glulam structure. The wooden structure extends to about 70 m in the longitudinal axis and about 45 m on the transverse axis at a height of 27.5 m. More than 1,700 unique timber elements (900 m³ of glulam) were delivered to the auditorium and assembled in about 10 months between September 2015 and June 2016. Cross laminated connection joints made from beech connects the wooden structure.

Location

Boulogne-Billancourt, France

Architect

Shigeru Ban, Jean de Gastines

Construction period

2016

Status

Completed

Project category

Cultural, Free form, Façade, Glued laminated timber

Details

  • Wood species: Spruce, Beech (Connection joints)
  • Volume: 900 m³ glued laminated timber

Product / Solution

HESS FREE FORM, GLT PREMIUM

Awards

  • 2015 - Prix du Meilleur Projet futur (Best Futura Project)
  • 2014 - Prix du label Biodivercity du Conseil International de Biodiversité et Immobilier

La Seine Musicale // Paris (24/03/2016)

Published by: Département des Hauts-de-Seine

Started in July 2014, the building site progresses well. The structural work is finished and the glulam construction around the Auditorium is assembled. The works on the orchestra hall and the exercise rooms are still in progress. The building will be opened to visitors from 2017 under the Name "La Seine Musicale".

La Seine Musicale // Paris (26/11/2015)

Published by: Département des Hauts-de-Seine

On the building site of Ile Seguin which formerly hosted the factory buildings of Renault Paris, a 36.500 sqm complex with space for 6.000 visitors is now being erected. Besides the cultural area, the building will also incorporate restaurants and living space for the musicians.



HESS TIMBER is very proud having the possibility to realize this Musical Center which consists  of two concert halls, recording studios and rehearsal rooms, together with the famous architects Shigeru Ban and Jean de Gastines who have a certain affinity to timber. "La Seine Musicale" is situated on the isle Seguin, a small island of the river Seine, and therefore necessitates very special assembly workflows.





La Seine Musicale // Paris (06/11/2014)

Published by: Département des Hauts-de-Seine

On the 6th November 2014, a group of General planners visited together with Patrick Devedjian the building site, situated on the isle of Seguin. This film gives a first impression about the future building.





La Seine Musicale 3D // Paris (12/07/2013)

Published by:  Ville de Boulogne-Billancourt

The city of Boulogne-Billancourt published in July 2013 a first 3D impression of the "La Seine Musicale", for which the building works started in 2014.
