Toskana Therme

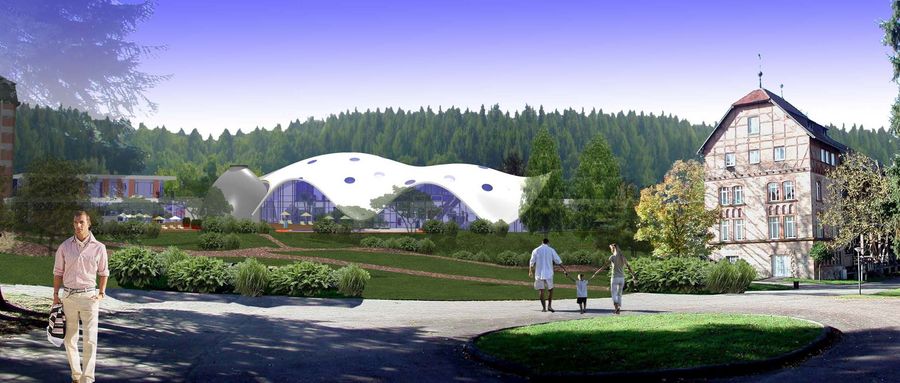

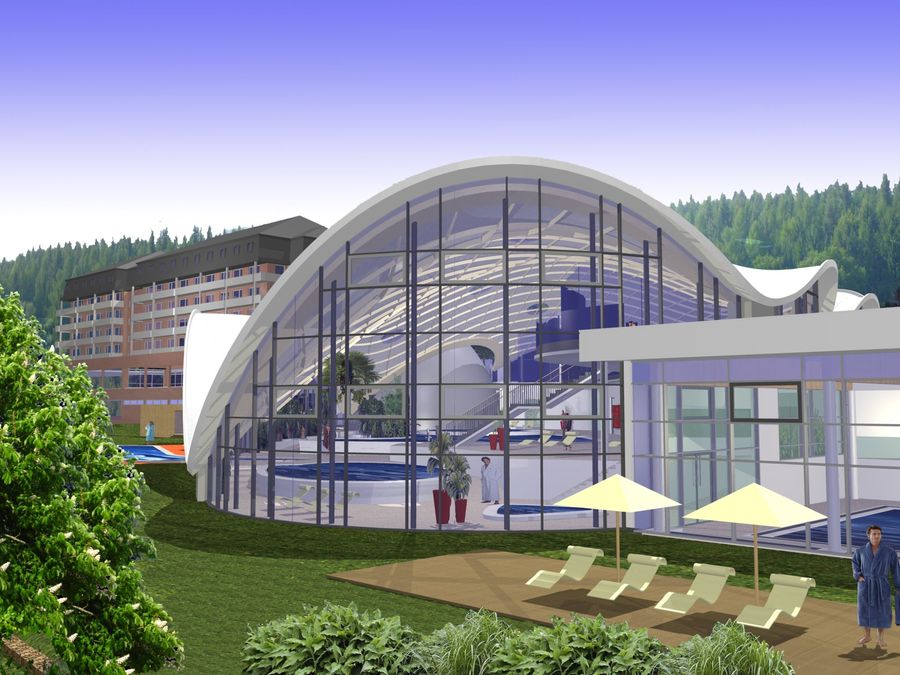

In January 2008, the PPP tender for the construction of a new thermal bath on the site of the former Leopold Koch bath in Bad Orb took place. The location for the new thermal bath between Gradierwerk, Kurhotel and the connection to the directly adjacent spa park was the logical further development of the city's structures. The free-formed roof construction consists of 700 individual components. The double curved glulam edges (240 x 800 mm) are made up of 25 sections - each of these elements is unique. The complete work is supplemented by 682 elements of different geometry: triangular, pentagonal and partly with round cuts in the margins and skylights. All acoustic parts were completely prefabricated and insulated in the factory in Kleinheubach.

Location

Bad Orb, Germany

Architect

Ollertz Architekten BDA

Construction period

2009

Status

Completed

Project category

Sport and Leisure, Free form, Glued laminated timber

Details

Free-formed glued laminated timber grate construction. The construction with double curved and turned ties with a total area of ​​2,200 m² consists of 8 marginal arches, 682 wood ribs and 682 acoustic elements.

  • Volume: 140 m³ glued laminated timber

Product / Solution

HESS FREE FORM
